Product Description
Product Overview

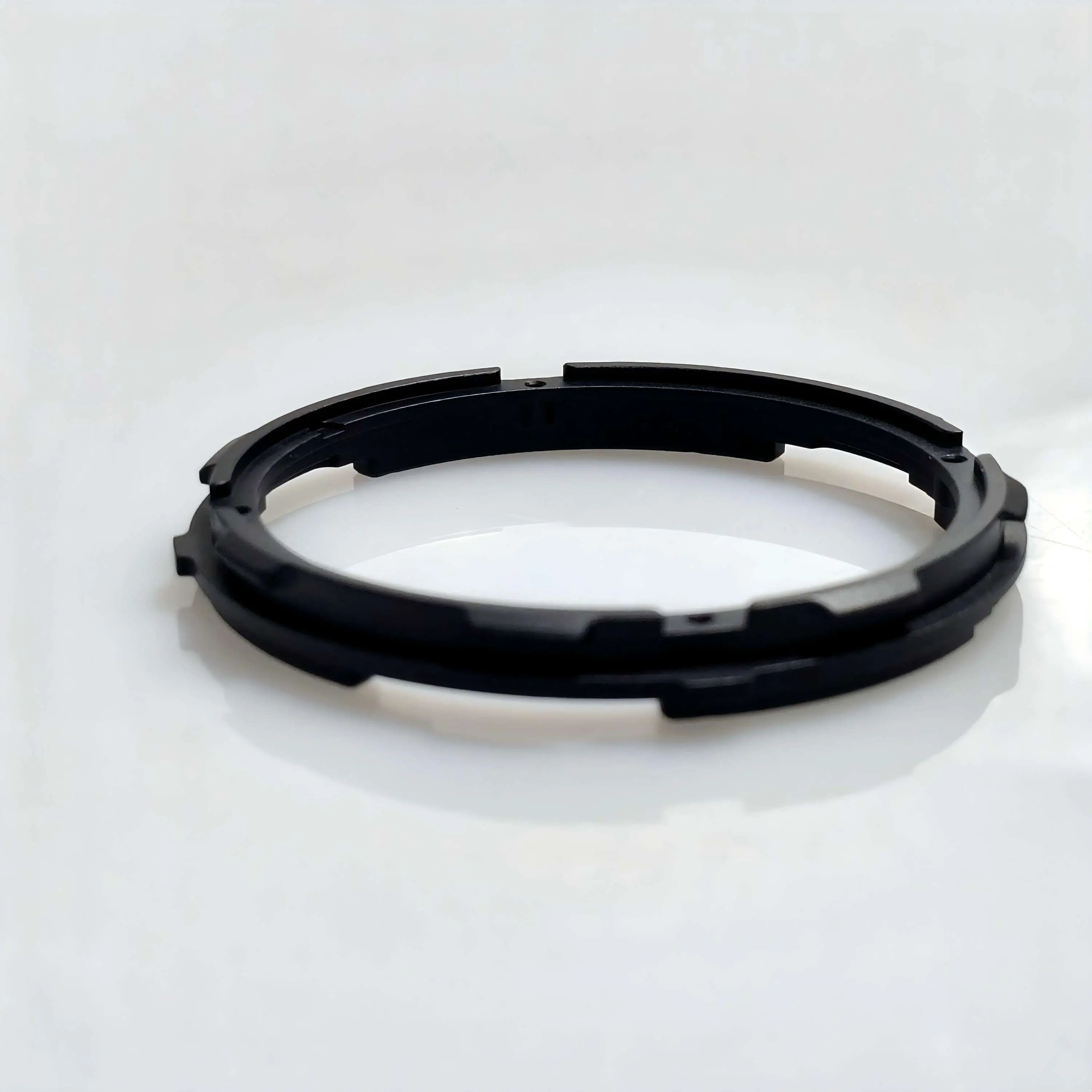

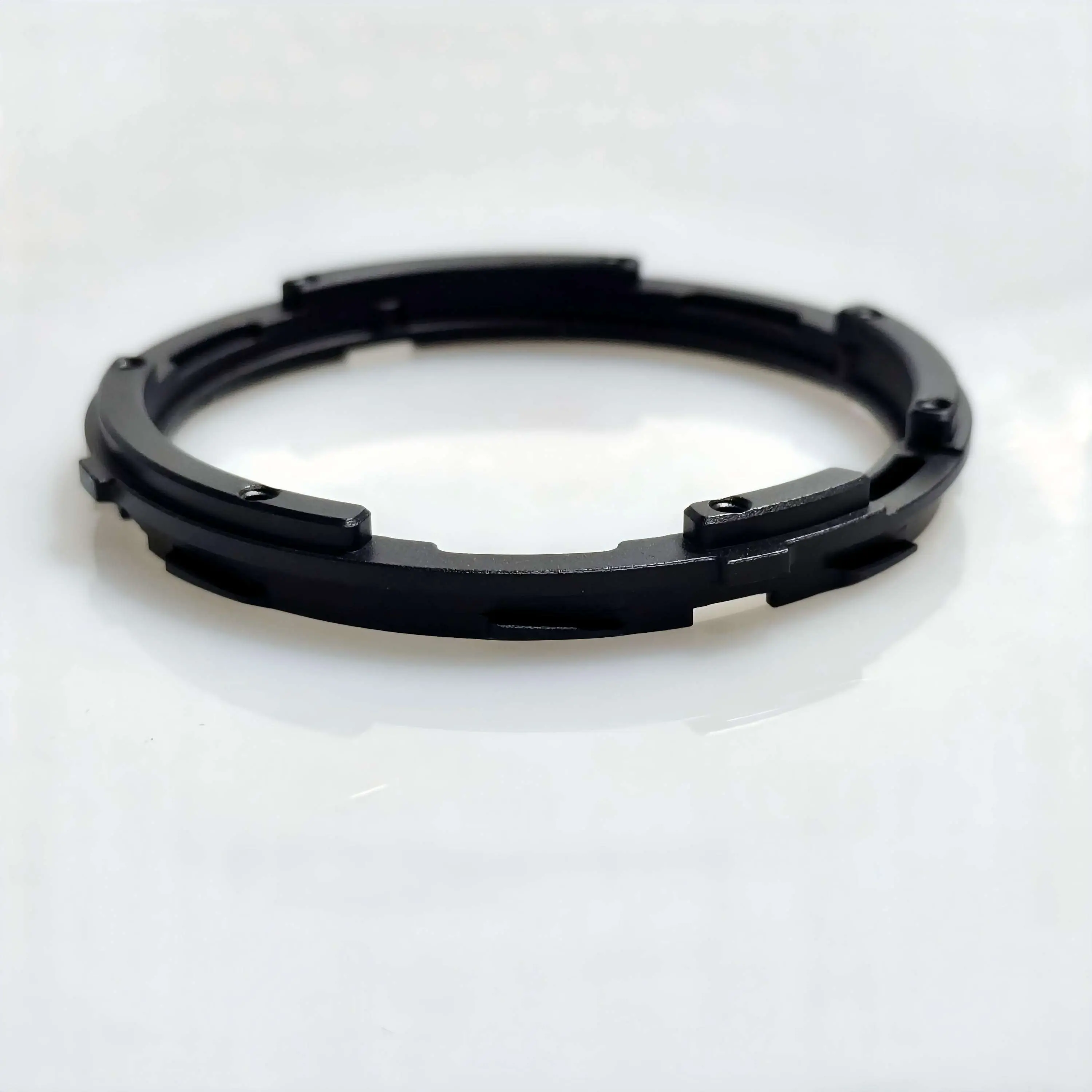

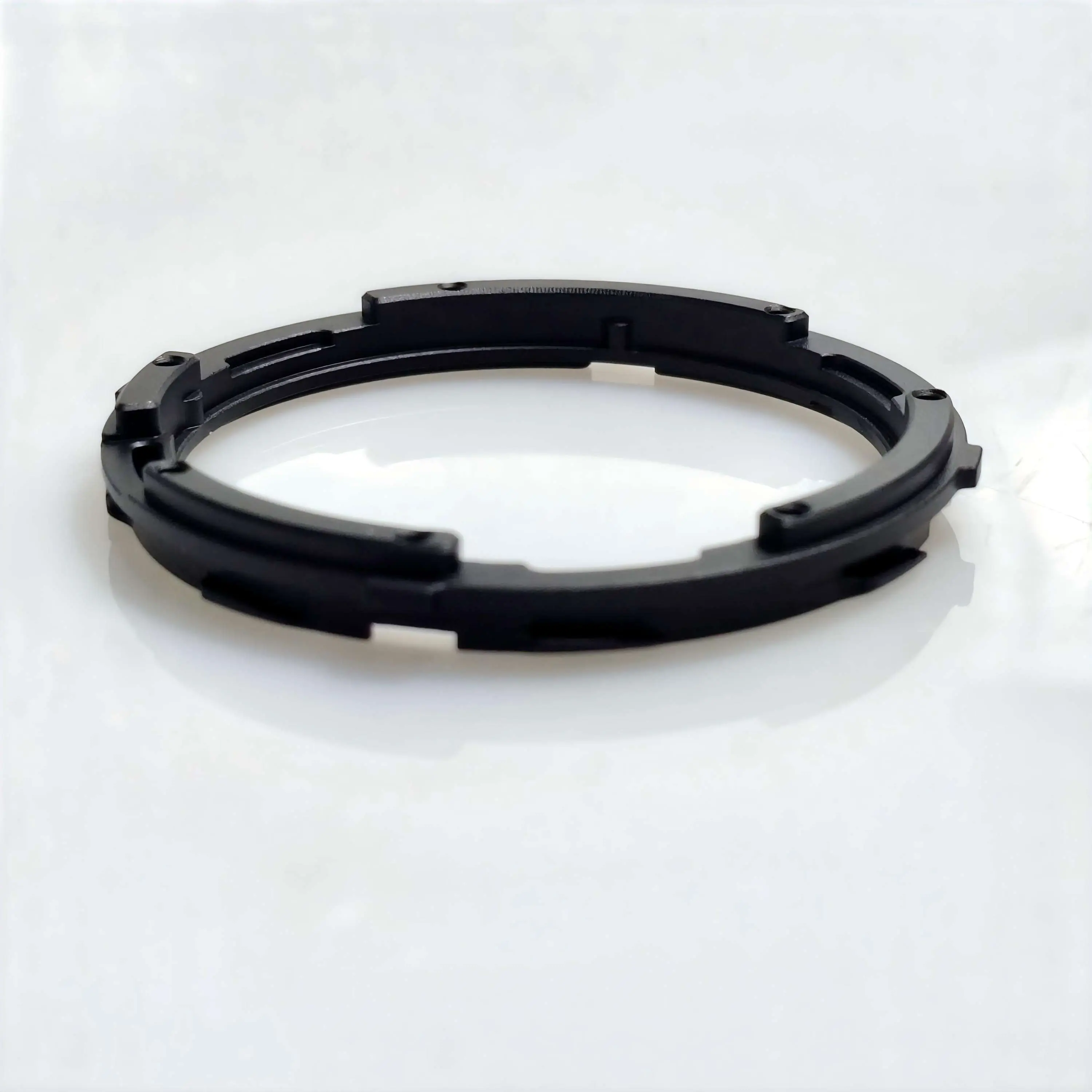

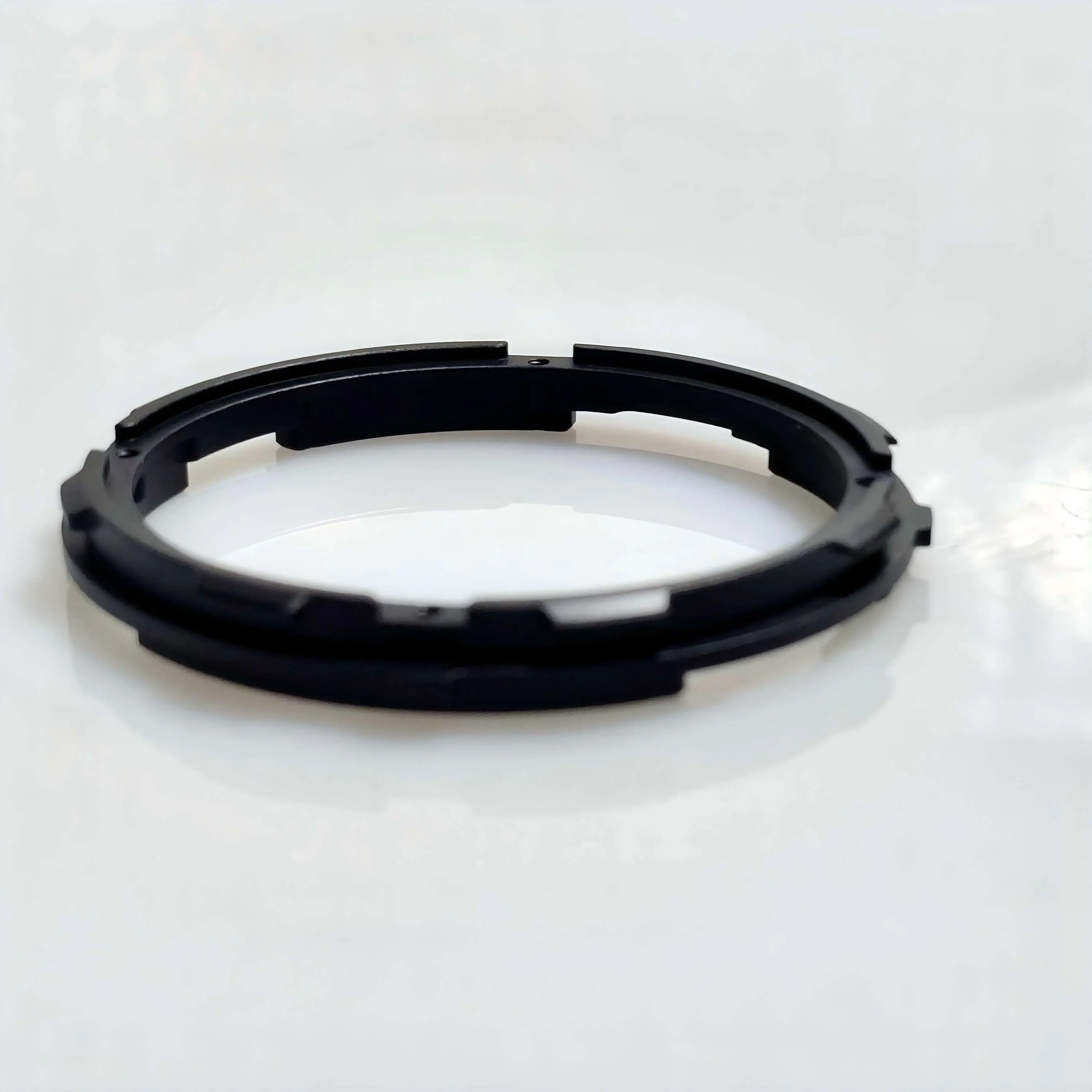

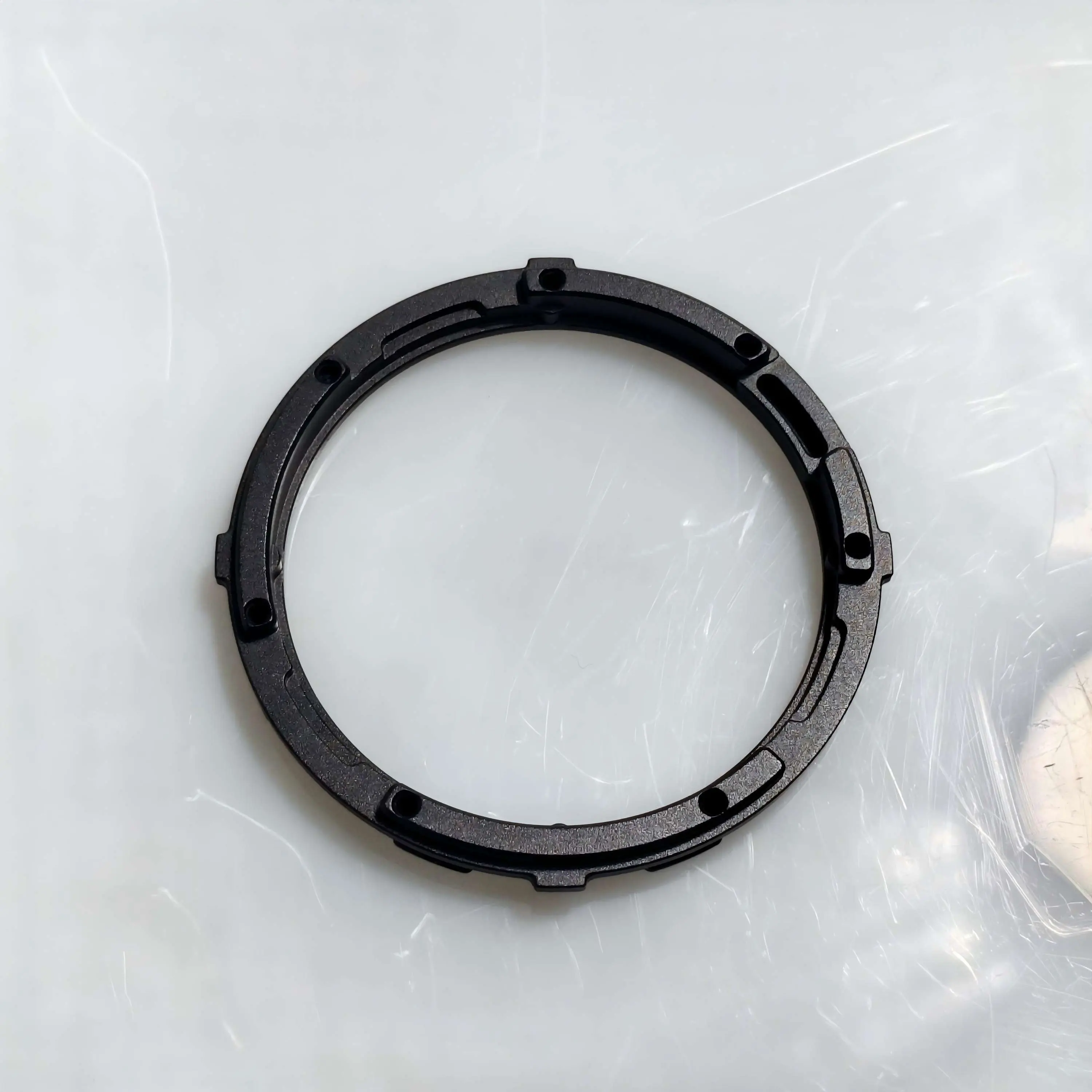

Get a ring made for your mating component, not an assembly redesigned around a standard part. Shenzhen Sunmy Hardware Co., Ltd. manufactures custom bayonet mount and locking rings from customer drawings or approved sample-based specifications. Segmented lugs, recessed slots, stepped profiles, and mounting holes are tailored to your required fit.
From prototypes to repeat production, we support CNC turning, milling, finishing, and optional mechanical assembly. Designs can be developed for optical mounts, sensor housings, instrumentation, and other equipment interfaces, with dimensions, materials, and acceptance criteria defined for each project.
Process & Manufacturing Insights
Turned diameters and faces are combined with milled lugs, slots, and holes. Tool access and tolerances determine whether turn-mill or separate setups are used.
We review ring support, clamping force, and machining sequences to manage distortion. Flatness and roundness are checked under agreed inspection conditions.
Define deburring and edge breaks around lugs, slots, and holes without altering critical profiles. Mating-part or gauge checks can be included in the inspection plan.
Match finishes to the material. Confirm coating thickness, masking, fit allowances, and any corrosion or optical requirements before production.
Key Specifications
| Manufacturing Process | CNC turning, milling, and drilling; turn-mill machining where suitable; prototype to production. |
|---|---|
| Available Materials | Aluminum, stainless steel, brass, and alloy steel; other metals or engineering plastics reviewed by grade. |
| Surface Treatment | Anodizing for aluminum; black oxide, plating, or e-coating on suitable materials; custom finishes. |
| Machining Tolerance | Per approved drawing; diameters, flatness, runout, and lug/slot position assessed by feature. |
| Customization Service | Custom rings, mating parts, and optional mechanical assembly to approved specifications. |
| Accepted Drawing Formats | STEP/STP, IGES/IGS, PDF, DWG, and SolidWorks; dimensioned 2D drawings plus 3D models. |
| Quality Assurance | First-article, in-process, and final checks to an agreed plan; inspection and material documents on request. |
| Packaging Options | Individual protection or fitted trays to separate rings; export cartons or agreed protective packaging. |
Key Features & Advantages
- Built Around Your Interface: Customize ring dimensions, lug angles, slot profiles, mounting patterns, material, and finish. Sample-based projects are converted into agreed specifications before manufacture.
- Coordinated Multi-Process Supply: Combine CNC machining and turning with casting, stamping, or injection molding for related components, with one contact coordinating the manufacturing scope.
- Optional Mechanical Assembly: We can manufacture or source mating housings, spacers, pins, and fasteners, then assemble and check the components to your approved requirements.
- Clear Quality & Delivery Requirements: First-article checks, production updates, inspection records, and protective packaging are agreed for your project, keeping critical interfaces and delivery scope clear.
Other Products
Custom Titanium Ultrasonic Booster
Custom CNC Turned Tooling Sleeves & Retaining Plugs
Custom Hollow-Shaft Cycloidal Reducer
Custom 6-Axis Force/Torque Sensor Housings
Technical FAQ
A: CMM, optical measurement, or dedicated gauges are selected for the specified features. We agree on datums, inspection conditions, and checks after finishing. Required clearance, rotational play, and retention performance must be defined with the mating assembly.
A: Yes. We work from your drawings or approved sample-based specifications, not only standard sizes. Mating components, hardware installation, and mechanical assembly can be included, with fit and functional checks agreed before production.
A: We support prototypes, pilot batches, and repeat production. Minimum quantities and delivery dates are confirmed after reviewing geometry, material availability, finishing, inspection requirements, and assembly scope.
A: Send a dimensioned 2D drawing and 3D model, material grade, finish, quantity, and target delivery date. Include mating-part files and any critical clearance or assembly requirements. We review DFM, manufacturing scope, and inspection needs before quoting.
A: We optimize fixture designs, regulate clamping forces, utilize specialized jaws, and plan sequential stress-relief passes to ensure strict adherence to roundness, flatness, and dimensional tolerances.
A: Yes. During the DFM review stage, we calculate pre-plate machining tolerances and implement precise masking plans on critical locking profiles or threaded surfaces to guarantee an accurate mating fit post-treatment.
Get a Fast, Technical Quote & Free DFM Review
Don't let tolerance stack-up delay your product launch. Submit your project details, and our engineering team will evaluate your design for manufacturability before the first cut.
