Product Description
Product Overview

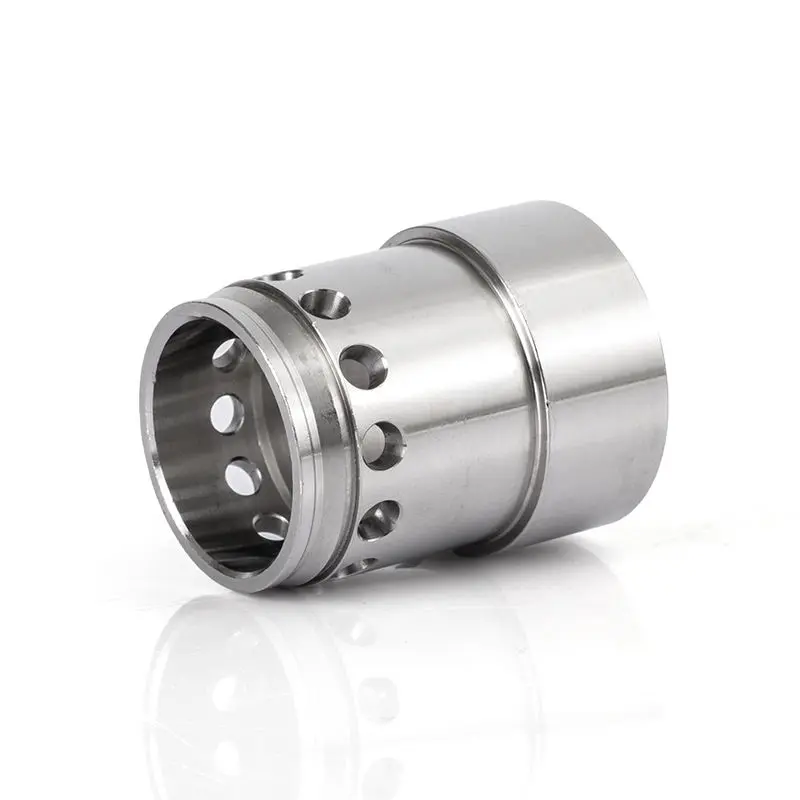

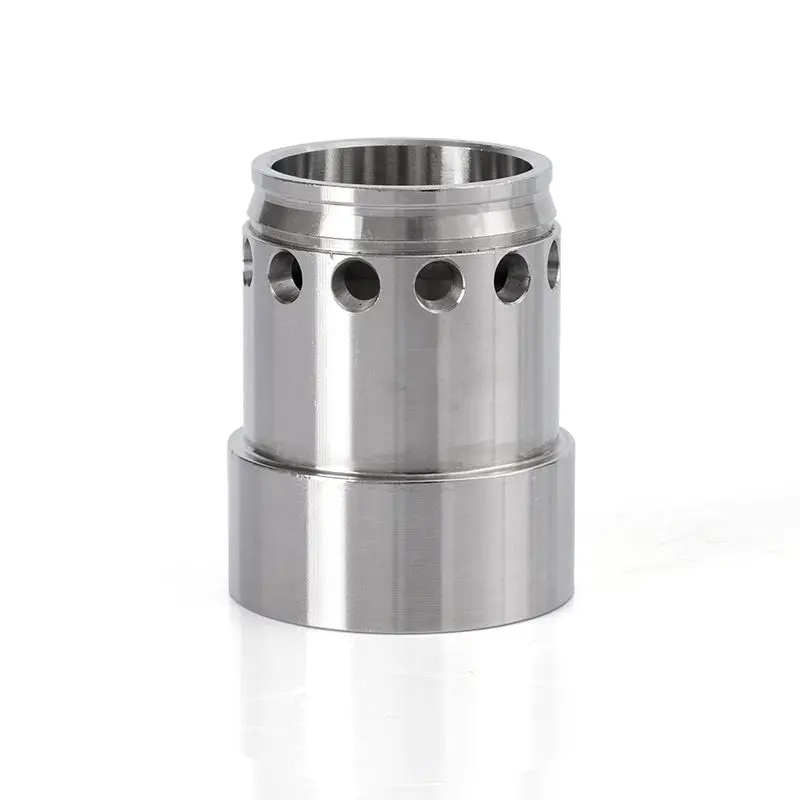

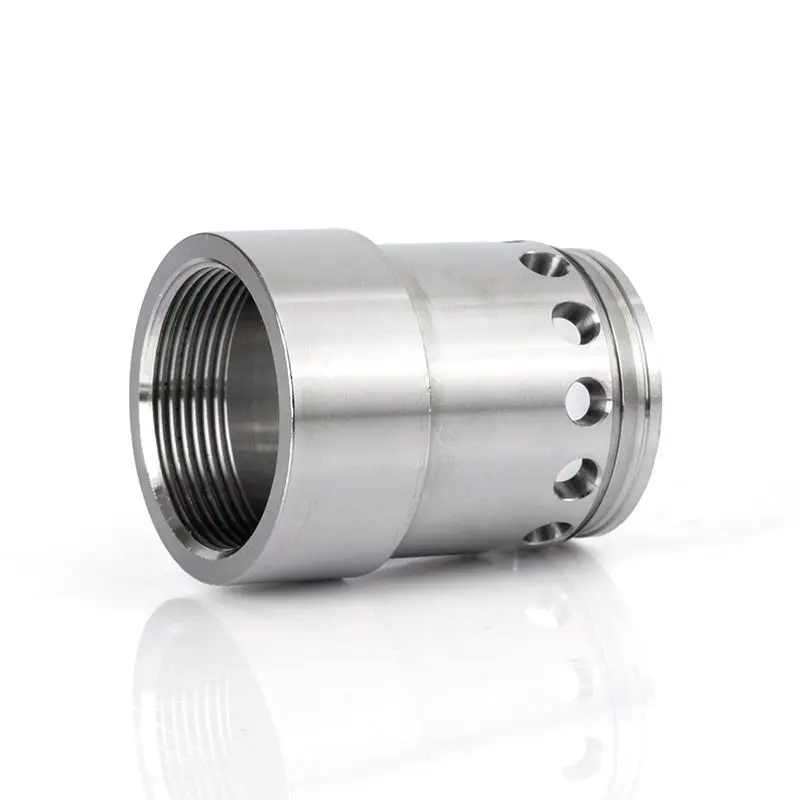

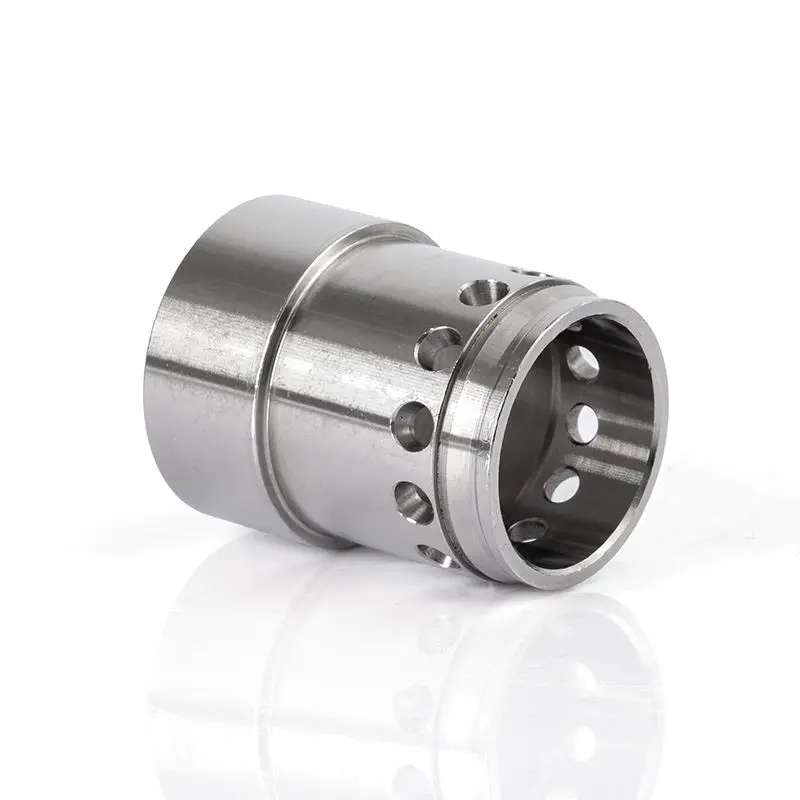

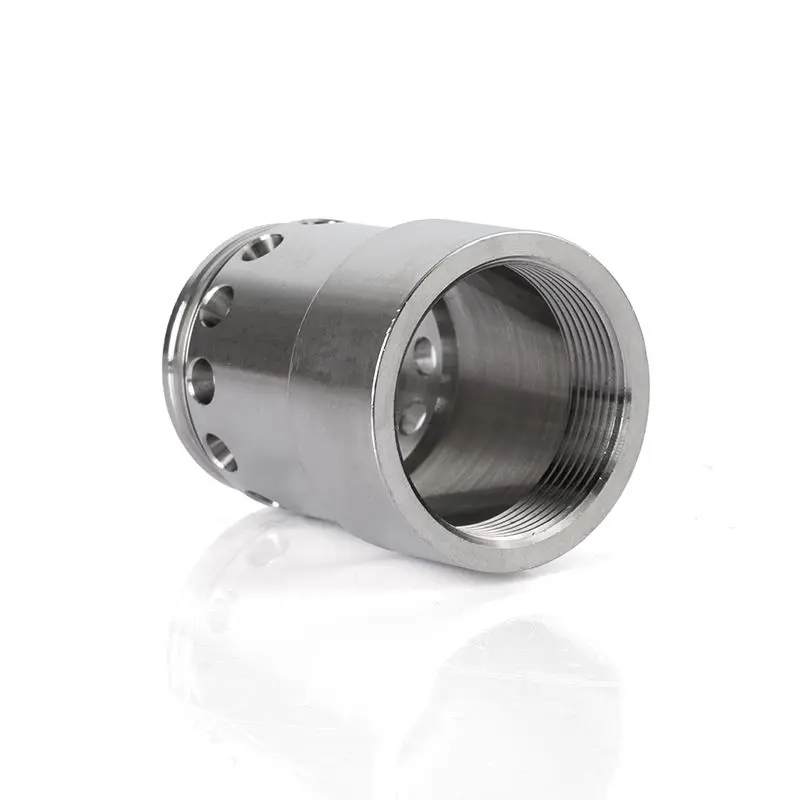

Engineered for high-performance industrial filtration, sensor encapsulation, and fluid control machinery, our Custom CNC Precision Turned Stainless Steel Filter Sleeve delivers exceptional geometric accuracy, high structural integrity, and long-term operating durability. Specifically optimized for fluid distribution systems, hydraulic/pneumatic couplings, and protective sensor housings, this component is meticulously designed to survive demanding, high-pressure, and corrosive environments without compromising dimensional tolerances.
Manufacturing Process & Engineering Insights
At Shenzhen Sunmy Hardware Co., Ltd., we utilize state-of-the-art multi-axis CNC lathe turning centers integrated with high-speed micro-drilling and internal thread-tapping systems. This advanced one-clamp setup ensures absolute concentricity between the outer diameter cylinder, the precision internal threads, and the radial multi-hole pattern, eliminating alignment errors common in multi-stage production setups.
Our advanced turning capabilities easily handle complex step transitions, internal chamfers, and precise grooves while maintaining strict micron-level tolerances up to ±0.01mm. To unlock maximum corrosion resistance and longevity in harsh marine, chemical, or high-moisture environments, all stainless steel components undergo an intensive post-machining chemical passivation and ultrasonic cleaning process, removing surface free iron and generating a flawless, uniform anti-oxidation barrier layer.
Technical Specifications
| Technical Parameter | Specification Description |
|---|---|
| Product Name | Custom CNC Precision Turned Stainless Steel Filter Sleeve |
| Core Process | CNC Precision Turning (Lathe Machining) + Micro-Drilling + Internal Tapping |
| Material Options | Stainless Steel (SUS304, SUS316, SUS316L), Brass, Aluminum Alloys, Carbon Steel, Engineering Plastics (POM, PEEK) |
| Dimensional Scope | 100% Fully Customized based on customer 2D/3D engineering drawings |
| Machining Tolerance | Precision up to ±0.01 mm (Strict concentricity & coaxiality compliance) |
| Surface Finishes | Passivation, Electro-polishing, Precision Sandblasting, Mirror Polishing, Laser Engraving / Logo Marking |
| Thread Specifications | Metric, NPT, BSP, G, UNC/UNF (100% verified via calibrated Go/No-Go plug gauges) |
| Industrial Applications | Industrial Automation, Fluid Filtration Systems, Hydraulic Assemblies, Sensor Housings, Pneumatic Valves |
| Minimum Order Quantity | 100 Pieces (Supports rapid prototyping, low-volume verification, and scalable mass production) |
| Quality Control Protocol | 100% Comprehensive Pre-Shipment Inspection (CMM, Digital Calipers, Micrometers, Projectors) |
| Design File Formats | STEP (.stp/.step), IGES (.igs), SolidWorks, AutoCAD (DWG/DXF), High-Resolution PDF |
| Packaging Standards | Custom Export Packing, Individual Anti-scratch Cell Padding, Protective Bubble Wrap, Eco-friendly Cartons |
Key Features & Strategic Advantages
Micron-Level Precision
Tight tolerances up to ±0.01mm are maintained using multi-axis CNC lathes, ensuring seamless assembly fitment.
Premium Material Selection
Premium grades like SUS304 and SUS316L provide peerless defense against acid-base corrosion, high oxidation, and high mechanical pressures.
End-to-End Bespoke Customization
100% tailor-made dimensions, customizable multi-hole layouts, internal thread profiles, and custom laser-marked logos according to technical blueprints.
Rigorous Quality Assurance
Mandatory 100% factory inspection covers thread conformity, concentricity, wall thickness consistency, and surface defects prior to export.
