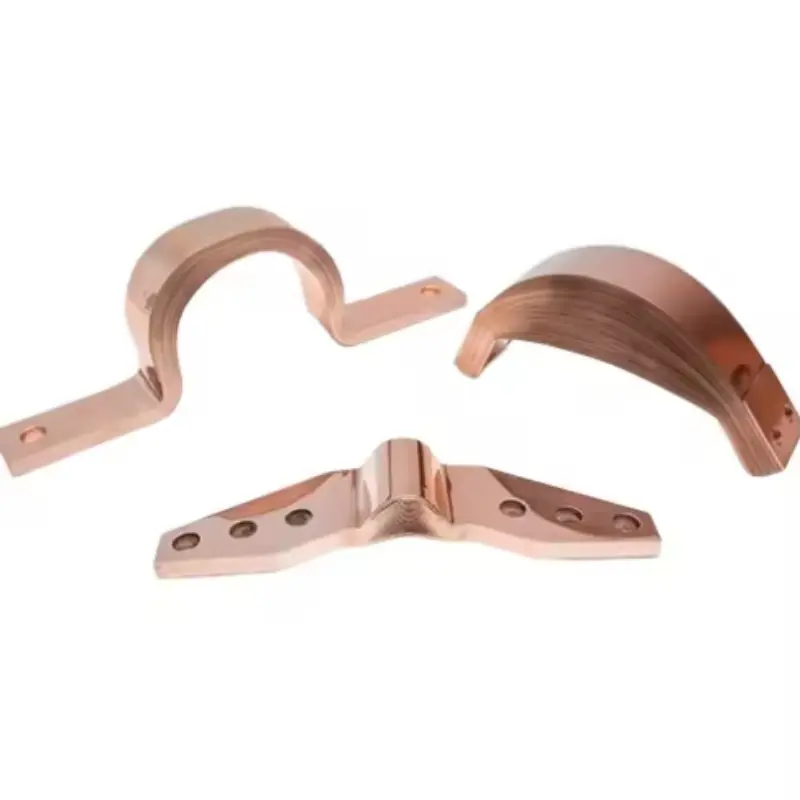

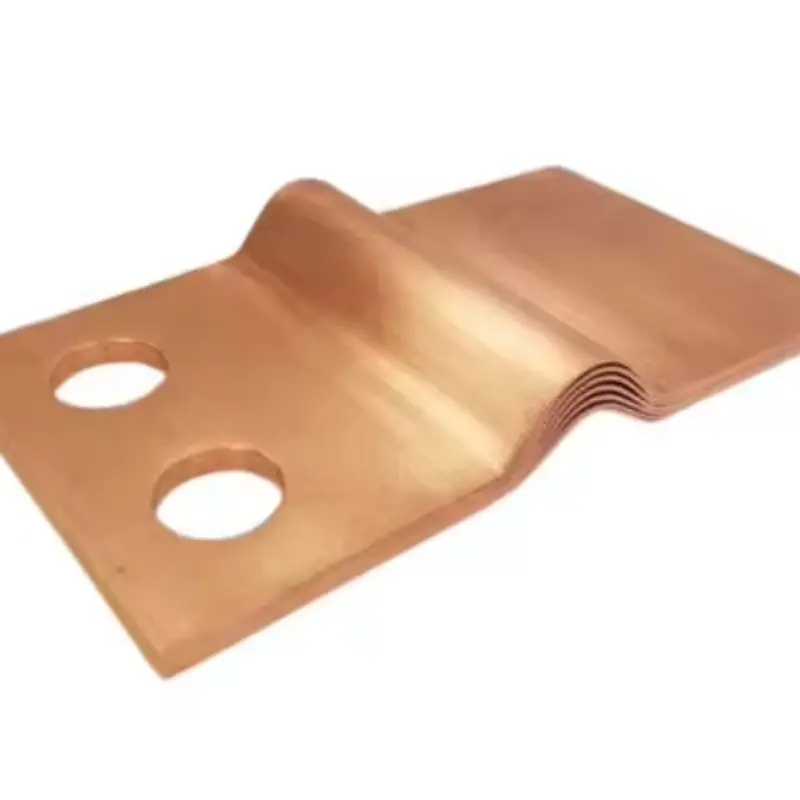

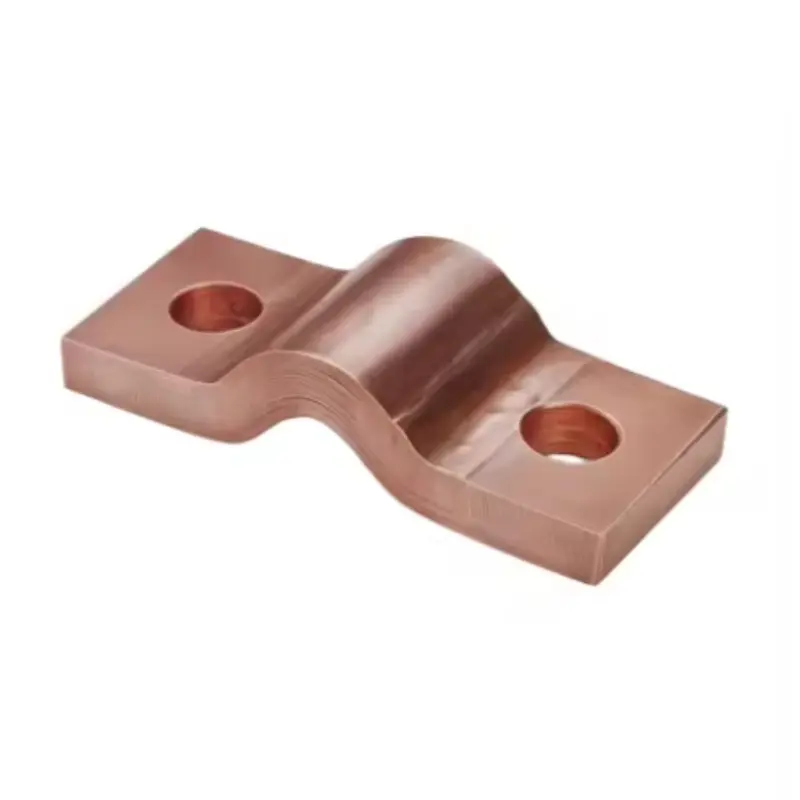

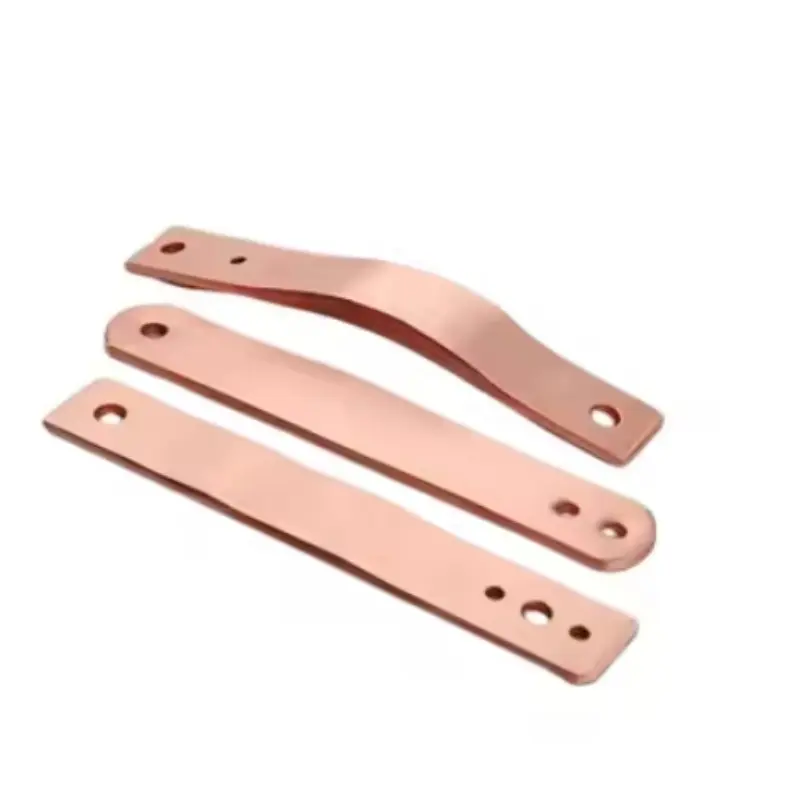

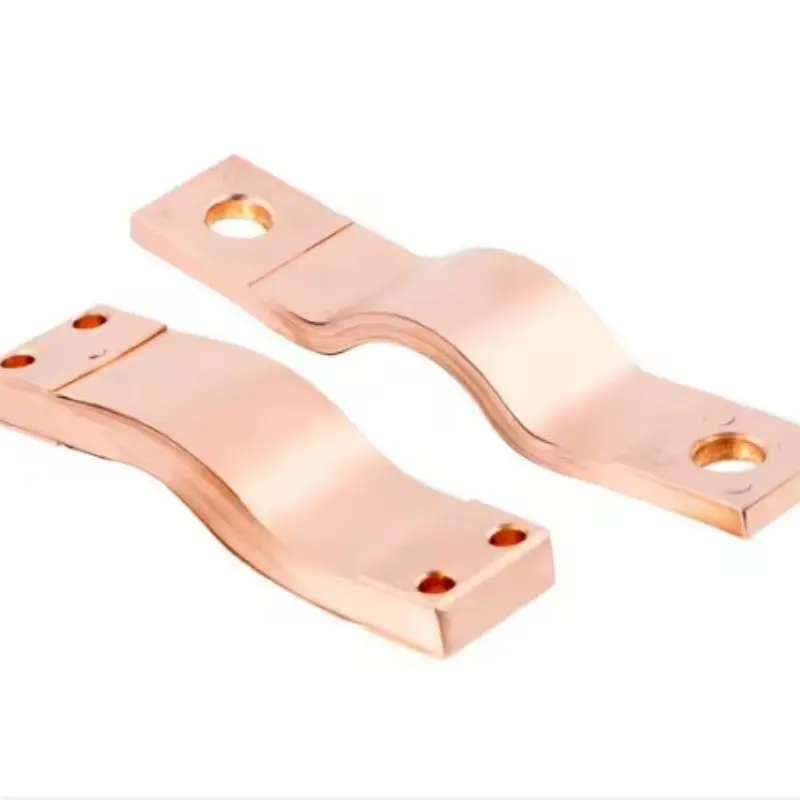

Custom Flexible Laminated Copper Busbar OEM Manufacturer High Conductivity Copper Bus Bar for EV Battery Pack Energy Storage and Electrical Equipment

Product Overview

Shenzhen Sunmy Hardware Co.,Ltd. specializes in the manufacturing of high-performance Flexible Laminated Copper Busbars. Engineered to accommodate dynamic loads, thermal expansion, and mechanical vibration, these laminated conductors ensure reliable and safe power transmission in highly demanding environments. Designed specifically for modern energy solutions, they are the ideal connection components for electric vehicle (EV) battery packs, power inverters, switchgears, and heavy-duty industrial electrical equipment. We provide fully customized solutions tailored to your specific spatial and power distribution requirements.

Process & Manufacturing Insights

Our production relies on advanced CNC Machining integrated with precision lamination and consolidation technologies. The busbars are constructed by stacking multiple layers of highly conductive, ultra-thin copper foils. The terminal areas are firmly consolidated (often through diffusion welding or riveting) and then subjected to high-precision CNC machining.

This sophisticated machining process allows us to achieve exceptionally tight tolerances, perfectly flat contact surfaces, and highly accurate mounting holes, ensuring optimal electrical connectivity and minimal contact resistance. Our state-of-the-art manufacturing capabilities enable us to seamlessly produce complex 2D and 3D geometries—including intricate U-shapes, S-bends, and multi-angled configurations—to bypass structural obstacles within your equipment.

Key Specifications

Specification	Details
Product Name	Flexible Laminated Copper Busbar / Battery Conductor
Manufacturing Process	CNC Machining, Lamination, Bending, Press-Welding
Material Options	Copper, Brass, Beryllium Copper (BeCu), Phosphor Bronze, Nickel Plate
Dimensions / Size	Fully customized according to customer drawings
Surface Treatment	Tin Plating, Nickel Plating, Bare Copper
Primary Applications	Electrical Equipment, Industrial Automation, Automotive (EV/HEV Battery Packs), Power Distribution
Drawing Formats Accepted	2D / 3D / CAD / DWG / STEP / PDF / IGS
Quality Certification	ISO 9001:2015 Certified
Sample Availability	Available upon request
Brand Designation	OEM / ODM Customization

Main Features & Advantages

Exceptional Flexibility

The multi-layered construction effectively absorbs and compensates for structural vibrations, mechanical shocks, and thermal expansion/contraction, protecting delicate battery terminals and electrical components from stress damage.

Superior Conductivity

Manufactured from premium-grade copper materials, delivering low resistance, high current-carrying capacity, and excellent heat dissipation for high-amperage applications.

High-Precision Customization

Supported by robust CNC machining capabilities, we process complex shapes and hole patterns with exact precision, ensuring perfect drop-in replacements or first-time fits for new assemblies.

Enhanced Durability

Optional premium surface treatments like tin or nickel plating provide superior resistance to oxidation and corrosion, extending the operational lifespan of components even in harsh industrial environments.

Reliable Manufacturing Partner

Backed by Shenzhen Sunmy Hardware Co.,Ltd.'s rigorous production standards, ensuring consistent quality from the first prototype to high-volume mass production.

Other Products

Custom Titanium Ultrasonic Booster

Custom CNC Turned Tooling Sleeves & Threaded Retaining Plugs

Custom Hollow-Shaft Cycloidal Reducer | OEM Parts & Assembly

Custom 6-Axis Force/Torque Sensor Housings & Elastic Elements

Technical FAQ

What drawing formats do your engineers accept for customized busbars?

We operate with high flexibility to meet your design needs. We accept all major industry-standard formats, including 2D/3D CAD, DWG, STEP, IGS, and PDF. Our engineering team reviews your drawings to optimize the CNC machining process for cost and performance.

Do you provide samples before committing to a bulk order?

Yes. As a solutions-oriented manufacturer, we actively support your R&D and validation processes. We can provide customized samples for your testing and approval before initiating mass production.

How do you guarantee the quality and precision of the finished parts?

Quality is at the core of our operations at Shenzhen Sunmy Hardware Co.,Ltd. Our facility is proudly ISO 9001:2015 certified. Every batch goes through strict quality control protocols, including precise dimensional verification, material conductivity testing, and thorough visual inspections of the machined surfaces and laminations.

What materials and surface plating options are available for flexible busbars?

We manufacture busbars from high-conductivity Copper, Brass, Beryllium Copper (BeCu), Phosphor Bronze, and Nickel Plate. Available surface finish options include Tin Plating, Nickel Plating, and Bare Copper, each selected to optimize anti-corrosion, prevent oxidation, and reduce contact resistance.

How do flexible laminated copper busbars compensate for thermal expansion and vibration?

By stacking multiple ultra-thin copper foil layers, the central flexible section can bend and flex freely under mechanical vibration and thermal contraction or expansion. This prevents mechanical stress from transferring directly to rigid battery terminals, switchgears, or sensitive electronics.

What consolidation methods are used for the busbar contact terminals?

We utilize molecular diffusion welding, press-welding, and precision riveting technologies to create a solid, homogenous contact area at the connection terminals, followed by CNC machining to guarantee flat mating surfaces and precise hole placement.
