Product Description
Product Overview

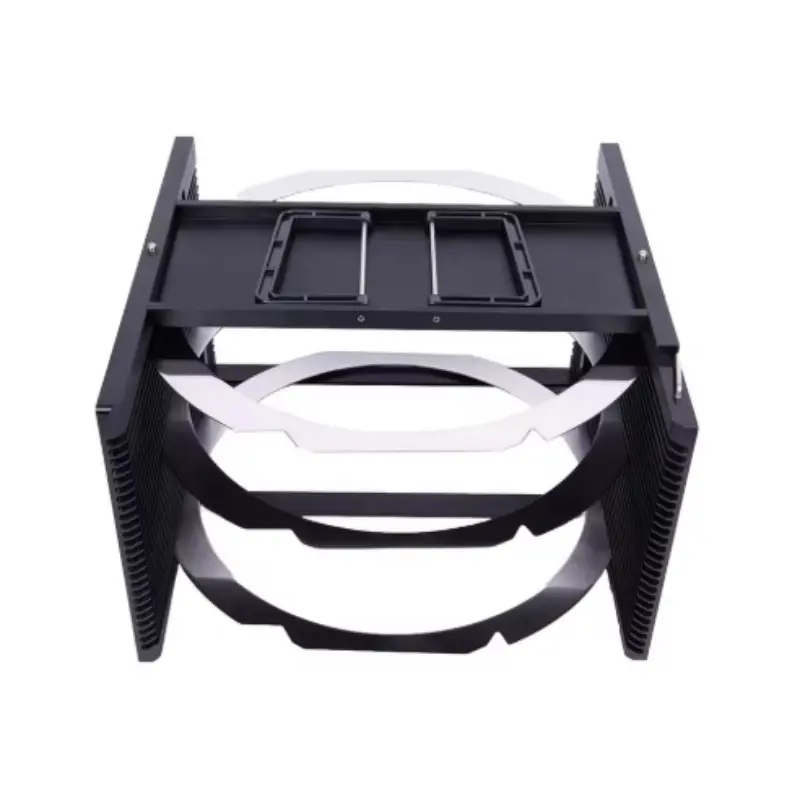

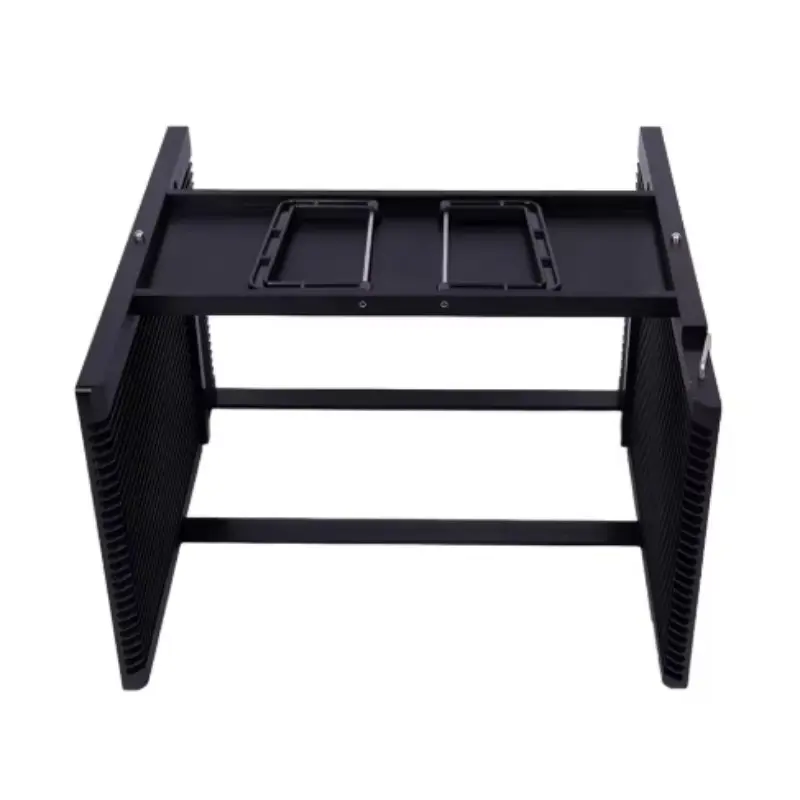

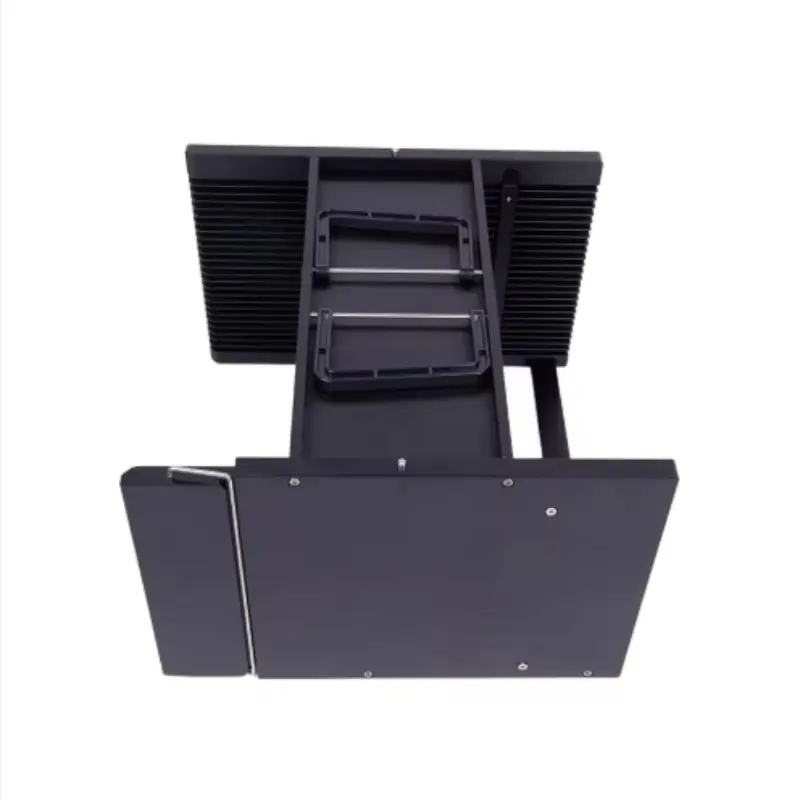

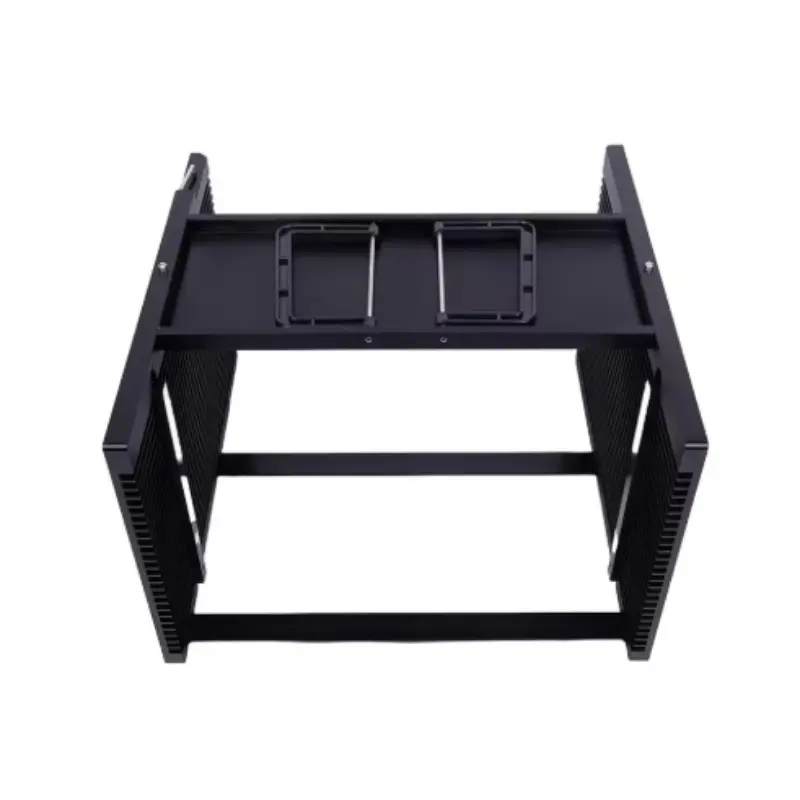

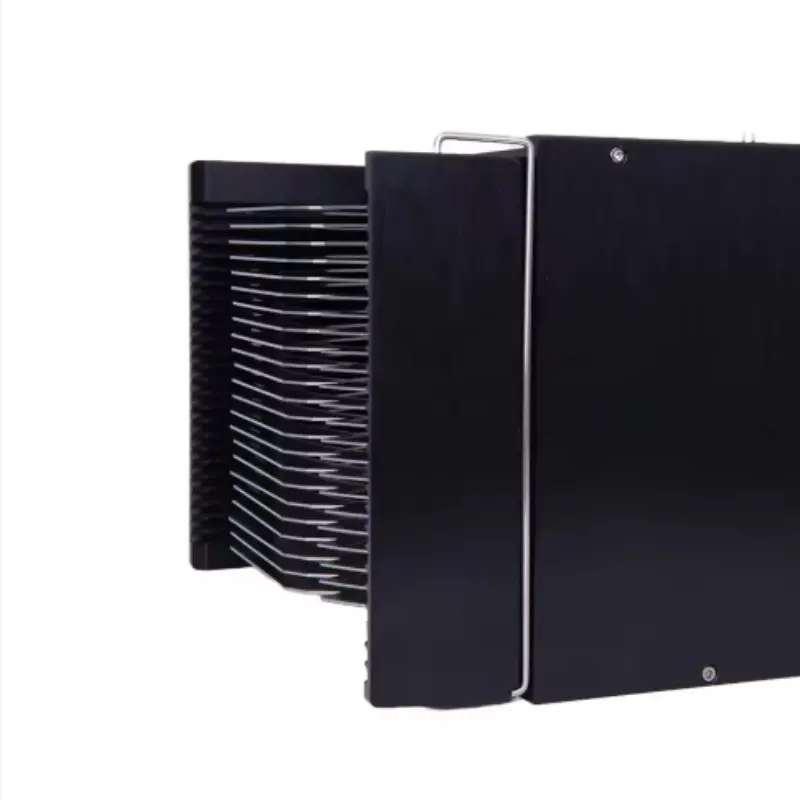

Designed for the rigorous demands of the microelectronics industry, our 8-Inch Semiconductor Wafer Carrier (Model TJC-8) is a premium Wafer Frame Ring Box engineered for the safe storage, handling, and transportation of delicate silicon wafers. Manufactured by Shenzhen Sunmy Hardware Co.,Ltd., this carrier provides superior structural integrity and precise slot alignment, ensuring seamless integration into semiconductor laboratory equipment and cleanroom automated systems. As a dedicated manufacturing partner, we leverage our robust R&D capabilities to deliver reliable, custom-tailored hardware solutions that protect your high-value semiconductor assets.
Process & Manufacturing Insights
At Shenzhen Sunmy Hardware Co.,Ltd., we utilize advanced manufacturing techniques to meet the exacting standards of the semiconductor industry:
Precision CNC Machining
The entire frame is meticulously carved from high-grade Aluminum alloy using multi-axis CNC milling and turning centers. This guarantees ultra-tight tolerances and exceptional structural rigidity, preventing any warping that could damage the wafers.
Precision Grinding & Surface Treatment
To ensure absolute safety for fragile silicon wafers, the carrier undergoes a meticulous surface grinding process to eliminate all burrs and sharp edges. The surface is then treated (available in anodized finishes such as black or silver) to prevent oxidation, enhance wear resistance, and prevent particulate contamination.
Quality Assurance
Every unit passes through our strict ISO-9001 certified quality control system, utilizing Coordinate Measuring Machines (CMM) to verify that slot pitches, depths, and overall dimensions perfectly match the 8-inch wafer specifications.
Key Specifications
| Product Type | Wafer Frame Ring Box / Semiconductor Wafer Carrier |
| Model Number | TJC-8 |
| Compatible Size | 8 Inches |
| Primary Material | Aluminum Alloy 6061 / 6063-T5 |
| Manufacturing Process | CNC Machining |
| Surface Treatment | Precision Grinding / Anodizing (Customizable Colors) |
| Application | Semiconductor Laboratory Equipment, Cleanroom Processing |
| Certifications | RoHS, ISO-9001 |
| Key Characteristics | Sturdy, Durable, High-Temperature Resistant, Eco-Friendly |
| Customization | OEM / ODM Fully Available |
| Origin | Shenzhen, China (Sunmy Hardware) |
Main Features & Advantages
Other Products
Custom Titanium Ultrasonic Booster
Custom CNC Turned Tooling Sleeves & Threaded Retaining Plugs
Custom Hollow-Shaft Cycloidal Reducer | OEM Parts & Assembly
Custom 6-Axis Force/Torque Sensor Housings & Elastic Elements | OEM/ODM
Get a Fast, Technical Quote & Free DFM Review
Don't let tolerance stack-up delay your product launch. Submit your project details, and our engineering team will evaluate your design for manufacturability before the first cut.
Technical FAQ
Q1: Can the slot pitch and overall dimensions be customized for non-standard wafers?
Absolutely. Shenzhen Sunmy Hardware Co.,Ltd. excels in OEM and ODM services. Our engineering team can adjust the CNC programming to accommodate specific slot pitches, depths, or overall frame dimensions based on your unique cleanroom requirements.
Q2: What surface finishes do you offer to prevent cleanroom contamination?
The standard finish involves high-precision grinding followed by hard anodizing. This creates a non-particulating, corrosion-resistant surface that is easy to clean and highly suitable for strict semiconductor environments. We can customize the anodizing color (e.g., silver, black) per your request.
Q3: What is the Minimum Order Quantity (MOQ) for these wafer carriers?
We understand that semiconductor labs often require prototype runs before scaling up. We offer flexible MOQs to support your initial R&D testing, while our strong manufacturing capacity ensures we can seamlessly transition to high-volume production when you are ready.
Q4: How do you guarantee the precision of the CNC machined slots?
We strictly adhere to ISO-9001 quality management standards. During and after the CNC machining process, parts are inspected using advanced metrology equipment, including optical comparators and Coordinate Measuring Machines (CMM), to ensure every slot meets the required micro-tolerances for 8-inch wafers.
Q5: Is the 8-inch wafer carrier compatible with automated handling systems?
Yes. The CNC-machined slots are engineered with micron-level precision to facilitate automated robotic arm transfer, and the external structural framework allows seamless integration with both manual processes and cleanroom robotic workflows.
Q6: Can this aluminum carrier withstand chemical cleaning and high baking temperatures?
Constructed from premium Aluminum Alloy 6061 / 6063-T5 with protective anodized surface treatments, the carrier delivers exceptional thermal stability and corrosion resistance against standard lab-grade cleanroom cleaning cycles and high-temperature processes.
