High-Quality Custom 5-Axis CNC Machined Billet Aluminum Impeller Compressor Wheel Manufacturers, Exporter
Product Description
Product Overview

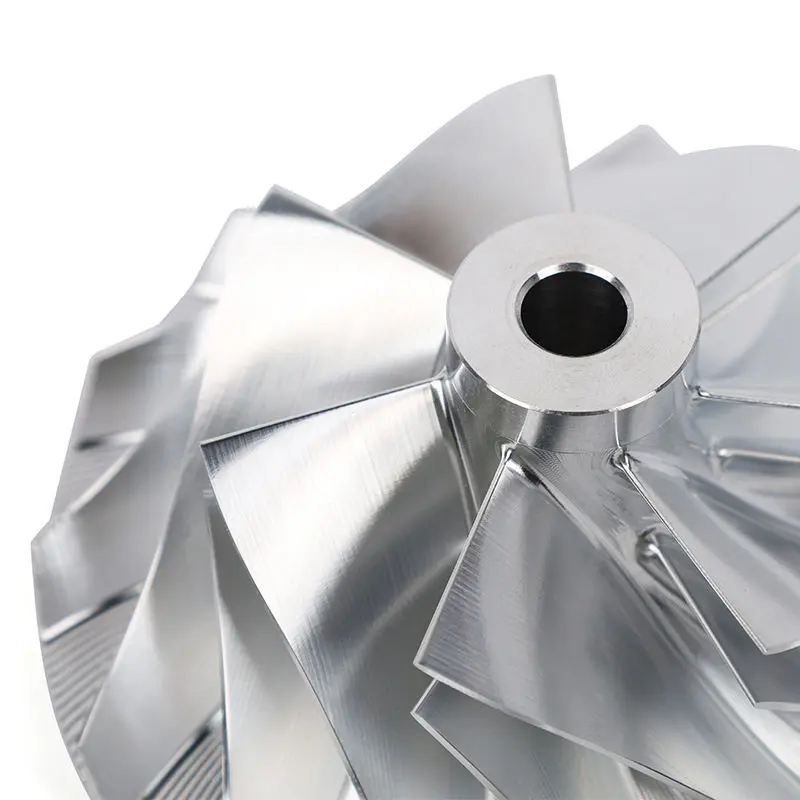

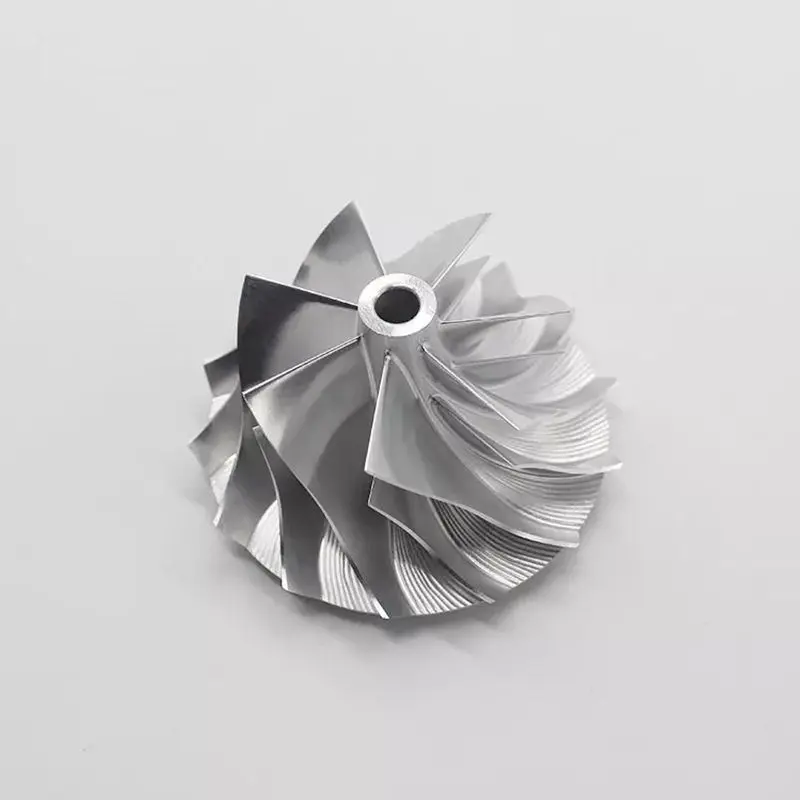

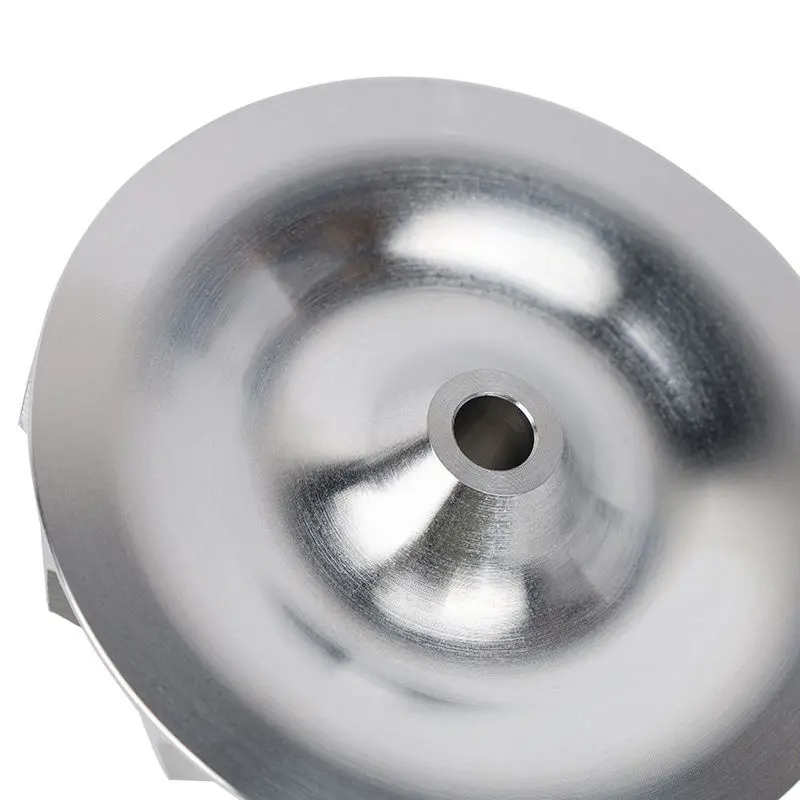

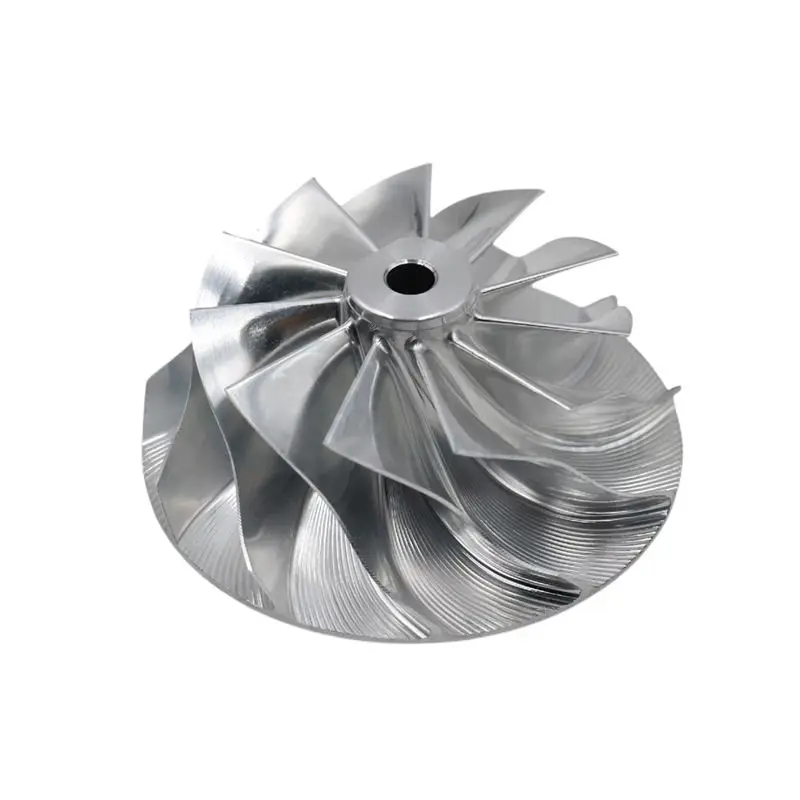

This high-precision impeller wheel is designed for high-RPM fluid dynamic applications where aerodynamic efficiency and structural reliability are paramount. Perfectly suited for turbochargers, superchargers, and UAV (unmanned aerial vehicle) turbines, it utilizes complex aerodynamic blade profiles to optimize airflow, compression ratios, and thermal dissipation under extreme operational pressures.
Manufacturing & Process Insights
Unlike standard cast impellers, this product is manufactured via advanced 5-Axis Simultaneous CNC Milling from a solid block of aircraft-grade billet aluminum alloy (or customized stainless steel/titanium). This subtractive manufacturing process offers critical advantages:
-
Zero Porosity Eliminates internal structural defects and micro-voids common in casting, dramatically increasing fatigue life and bursting strength.
-
Complex Geometry Execution The 5-axis continuous tool path allows for ultra-thin blade edges, aggressive wrap angles, and intricate splitter-blade designs that cannot be achieved with traditional 3-axis or 4-axis machining.
-
Dynamic Balancing Following precision machining, each unit undergoes strict high-speed dynamic balancing to eliminate centrifugal asymmetry, ensuring vibration-free performance at speeds exceeding 100,000 RPM.
Key Specifications
| Parameter | Specification Details (100% Fully Customizable) |
|---|---|
| Material Options | Aluminum Alloy (6061-T6, 7075-T6), Stainless Steel (304, 316, 17-4 PH), Titanium Alloy (TC4/Gr5) |
| Machining Process | 5-Axis Precision CNC Milling, Turn-Mill Compound Machining |
| Dimensional Tolerance | Up to ±0.005 mm (High Precision Grade) |
| Surface Roughness | Ra 0.4 - Ra 0.8 (Smooth aerodynamic finish) |
| Surface Treatment | Clear/Color Anodizing, Hard Anodizing, Electropolishing, Passivation, Shot Peening |
| Balancing Grade | ISO 1940 G0.4 / G1.0 High-Speed Dynamic Balancing |
| Drawing Formats Accepted | STEP, IGES, X_T, SolidWorks (SLDPRT), AutoCAD (DWG), PDF |
Key Features & Advantages
-
Optimized Aerodynamics Advanced CNC toolpaths produce flawlessly smooth blade surfaces, reducing drag and expanding the compressor's operating map.
-
Superior Material Strength Crafted from premium forged billets, offering exceptional resistance to centrifugal stress, high temperatures, and cyclic fatigue.
-
Bespoke Customization Engineering We do not offer just standard sizes; we manufacture 100% according to your custom engineering drawings and specialized performance parameters.
-
Rigorous Quality Assurance Every batch undergoes full dimensional inspection via Coordinate Measuring Machines (CMM) and non-destructive testing (NDT) if required.
Other Products
-
Custom Titanium Ultrasonic Booster
-
Custom CNC Turned Tooling Sleeves & Retaining Plugs
-
Custom Hollow-Shaft Cycloidal Reducer
-
Custom 6-Axis Force/Torque Sensor Housings
Get a Fast, Technical Quote & Free DFM Review
Don't let tolerance stack-up delay your product launch. Submit your project details, and our engineering team will evaluate your design for manufacturability before the first cut.
Technical FAQ for International Buyers
Q1: What is Sunmy Hardware's minimum order quantity (MOQ) for custom impellers?
A1: To support our clients' R&D and prototyping phases, our MOQ is 1 piece. We seamlessly scale from single-unit rapid prototyping to full-scale serial mass production.
Q2: How do you guarantee the high-speed operational safety of the impeller?
A2: Safety is guaranteed through material traceability, precision 5-axis machining that maintains precise mass distribution, and mandatory industrial-grade dynamic balancing testing to minimize residual unbalance.
Q3: Can you machine these parts from specific superalloys or aerospace-grade materials?
A3: Yes. In addition to high-strength Aluminum (7075-T6), we routinely machine Titanium Alloys (Grade 5/TC4) and Heat-Resistant Stainless Steel to withstand extreme thermal conditions.
Q4: What surface treatments and finishes can be applied?
A4: We provide various surface finishing options, including clear or color anodizing, hard anodizing for wear resistance, electropolishing, chemical passivation, and shot peening to improve fatigue life.
Q5: Which CAD file formats do you accept for quotation and manufacturing?
A5: We accept 3D CAD models in STEP, IGES, X_T, and SolidWorks (SLDPRT) formats, along with 2D engineering drawings in AutoCAD (DWG) or PDF for specified tolerances.
Q6: What tolerance grades and dynamic balancing standards do you support?
A6: We achieve tight dimensional tolerances up to ±0.005 mm and balance high-speed rotating components according to ISO 1940 G0.4 and G1.0 dynamic balancing grades.
