OEM 7-Inch CNC Aluminum Articulating Magic Arm for Camera & Monitor Service, Product
Product Description
Product Overview

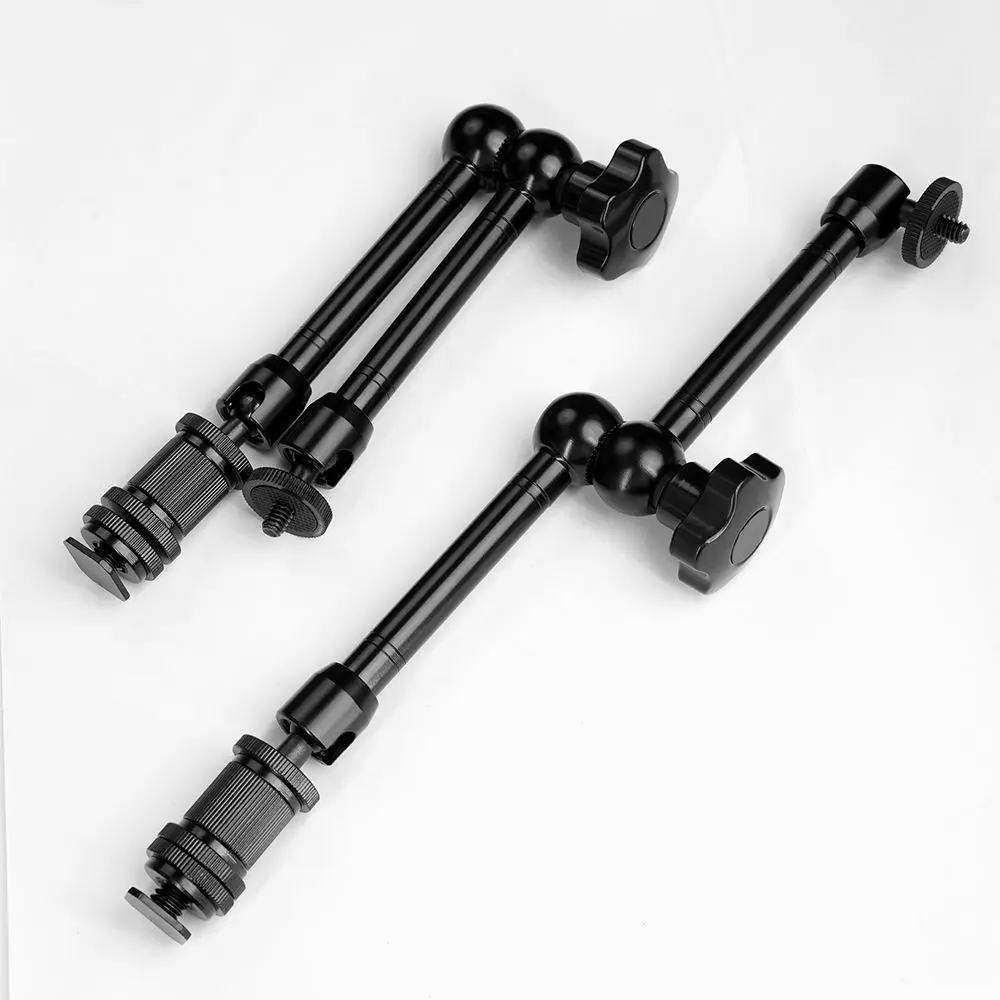

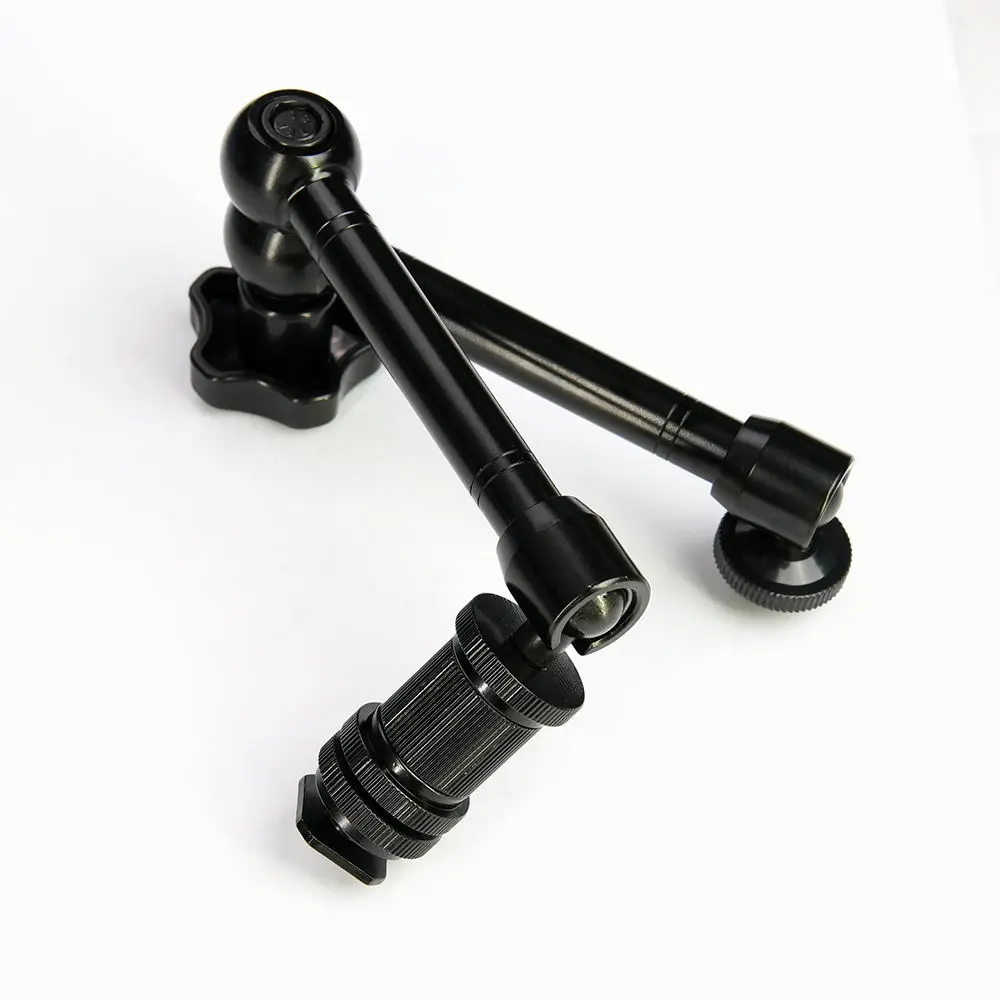

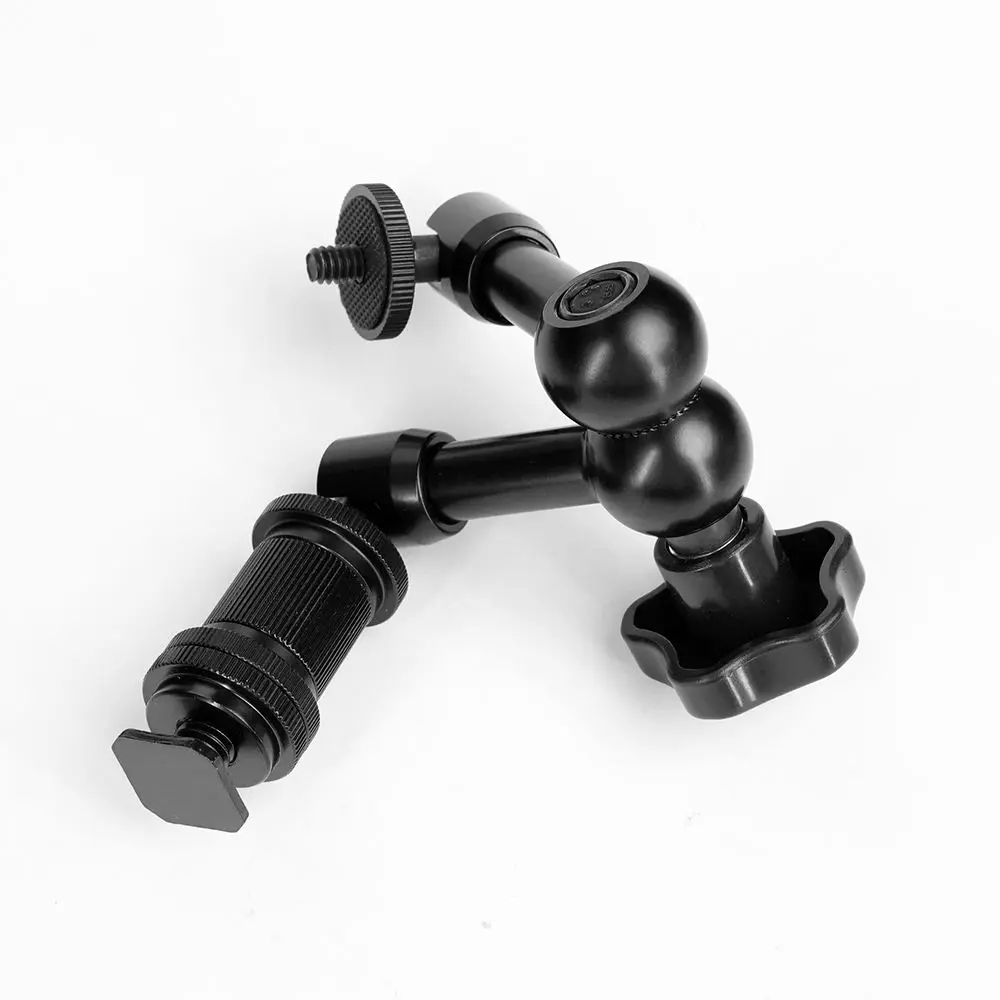

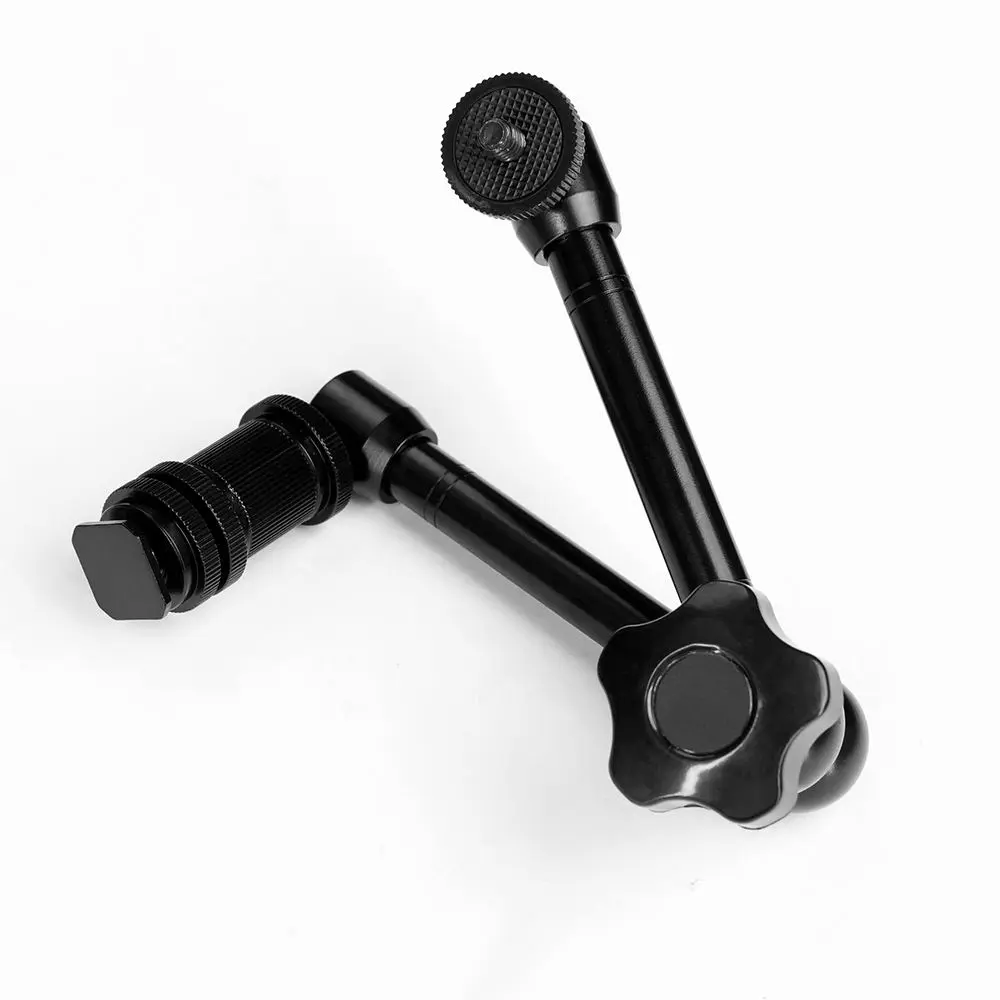

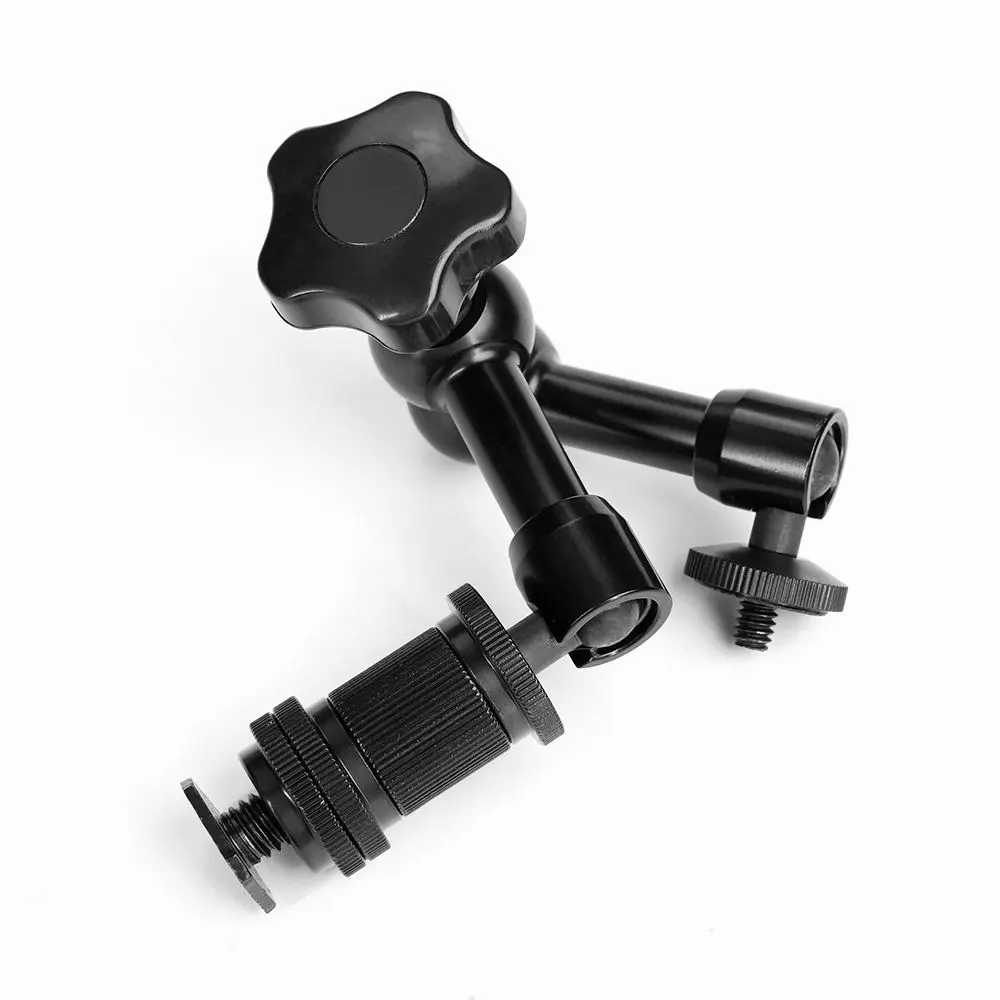

The Sunmy 7-Inch CNC Aluminum Articulating Magic Arm is a professional-grade, multi-functional rig mount designed for high-end cinematography, broadcasting, and studio photography setups. Engineered with dual 360-degree universal ball heads and a robust single-point central locking mechanism, this universal magic arm ensures stable, highly flexible angle positioning for external monitors, LED fill lights, microphones, wireless transmitters, and field recorders. It serves as an essential accessory for professional camera cages and studio ecosystems requiring high load capacities and long-term durability.
Manufacturing Process & Quality Engineering
At Shenzhen Sunmy Hardware, exceptional product performance begins with precision manufacturing. This magic arm is fully crafted using advanced Computer Numerical Control (CNC) Machining and turning technology. Starting from raw premium-grade solid aluminum alloy billets, every single shell, clamp, and arm section is milled to strict engineering tolerances within ±0.02mm. This ultra-high precision eliminates loose joints and guarantees seamless multi-axis articulation.
To ensure a slip-free locking mechanism capable of handling heavy rigs, the dual ball-joint studs are machined from high-tensile carbon steel rather than softer zinc/aluminum alloys. The entire aluminum assembly undergoes a heavy-duty industrial anodization process. This chemical treatment forms a hardened matte black layer that prevents scratches, resists corrosion, and completely eliminates reflections in professional studio environments, meeting the rigorous standards of international B2B buyers.
Key Specifications
| Parameter | Technical Specification |
|---|---|
| Product Name | 7-Inch CNC Aluminum Articulating Magic Arm |
| Manufacturing Process | High-Precision CNC Machining & Lathe Turning |
| Primary Material | Aerospace-Grade Aluminum Alloy + Heavy-Duty Carbon Steel Core |
| Surface Finish | Premium Industrial Matte Black Anodization (Anti-Reflective) |
| Mounting Interfaces | 1/4"-20 Standard Threaded Screw & Removable Cold Shoe Mount |
| Articulation Capacity | Dual 360° Universal Swivel Ball Joints |
| Locking System | Central Ergonomic Wing-Nut Single-Lock Mechanism |
| Customization Service | Full OEM / ODM Support (Custom Lengths, Threads, Finishes, Logos) |
| Dimensional Tolerance | ±0.02 mm |
| Quality Inspection | 100% Effective Locking & Structural Verification Performance |
Key Features & Business Advantages
High-Precision CNC Milling
Machined entirely from premium aluminum block, delivering superior structural rigidity, ultra-lightweight performance, and consistent structural integrity compared to cheaper die-cast products.
Rock-Solid Single-Knob Locking
A single ergonomic central wing nut tightens and locks both ball heads simultaneously. Engineered to deliver 100% effective, zero-slip locking even under heavy continuous payloads.
360° Universal Articulation
Dual-axis universal ball joints allow camera operators to seamlessly position monitors, LED arrays, or microphones at any requested angle with instantaneous adjustment.
Complete OEM/ODM Customization
We specialize in tailored hardware development. Clients can customize arm lengths, specify interface configurations (e.g., 3/8" screws, ARRI locating pins, NATO clamps), select colors, and request laser engraving.
Scalable B2B Supply Capacity
Backed by Shenzhen Sunmy Hardware’s advanced factory infrastructure, we guarantee highly scalable mass production, strict ISO-compliant quality control, and dependable international lead times.
Technical FAQ for Global Buyers
Q1: What specific OEM/ODM customization capabilities do you offer for this magic arm?
A: As a direct manufacturer, we offer comprehensive customization to match your product ecosystem. We can alter the overall length (such as 5", 7", 9", or 11"), modify interface types (changing to 3/8"-16 threads, adding ARRI locating pins, or integrated NATO rail clamps), provide custom anodized colors, and laser-engrave your private brand logo on the components.
Q2: How does your factory guarantee long-term locking stability and prevent slipping?
A: Our precise CNC milling maintains tight tolerances of ±0.02mm, ensuring the ball heads and sockets maintain maximum surface contact area. Additionally, we use high-strength carbon steel for the inner ball studs rather than softer aluminum alloys, delivering persistent, non-deforming, 100% effective locking force under heavy continuous payload.
Q3: What is the Minimum Order Quantity (MOQ) and lead time for custom production?
A: For custom OEM/ODM production runs, our standard MOQ is 500 units per batch. Sample engineering and prototyping require approximately 7–10 working days. Mass production orders typically take 20–30 days, depending on customization complexity and batch volume.
Q4: Which mounting interfaces are compatible with camera cage systems?
A: The unit comes equipped with industry-standard 1/4"-20 threaded studs on both ends alongside a removable cold shoe adapter. This allows direct installation onto camera cages, monitor brackets, and studio top plates with full ecosystem versatility.
Q5: How does the surface anodizing perform under harsh studio or outdoor conditions?
A: Every arm undergoes an industrial-grade matte black anodization treatment. This chemical surface conversion provides high scratch resistance, eliminates stray light reflections on set, and offers long-lasting corrosion resistance in humid or outdoor filming environments.
Q6: What quality inspection processes are conducted prior to shipment?
A: Shenzhen Sunmy Hardware executes 100% functional verification on all production batches. Each unit undergoes strict CMM dimensional inspection against ±0.02mm tolerance parameters, followed by central locking payload tests to ensure zero-slippage performance.
